CYJ Series Explosion Proof Alarm

CYJ Series Explosion Proof Alarm

mailto:chiyu@chiyulighting.com?subject=Request%20for%20informationGYJ Series Explosion-Proof Warning Light


●Key Specs: Silver-gray die-cast aluminum base, red high-brightness LED, 3 models (with guard/with horn/basic), IP66 protection


●Safety Compliance: GB3836.1-2010 certified, Ex d IIC T6 Gb explosion-proof rating, CCC & T/GIES 024-2025 compliant for Zone 1/2 hazardous areas


●Warning Features: Integrated sound-light alarm (≥95dB@1m), flash frequency 1-3Hz adjustable, 24V/220V optional, emergency runtime ≥90min


Applications: Oil platforms, chemical pipelines, coal mine escape routes, gas stations, and flammable environments (-40℃ to +70℃ operating temp)

0.00
0.00

Product Description

mailto:chiyu@chiyulighting.com?subject=Request%20for%20informationGYJ Series Explosion-Proof Warning Light


●Key Specs: Silver-gray die-cast aluminum base, red high-brightness LED, 3 models (with guard/with horn/basic), IP66 protection


●Safety Compliance: GB3836.1-2010 certified, Ex d IIC T6 Gb explosion-proof rating, CCC & T/GIES 024-2025 compliant for Zone 1/2 hazardous areas


●Warning Features: Integrated sound-light alarm (≥95dB@1m), flash frequency 1-3Hz adjustable, 24V/220V optional, emergency runtime ≥90min


Applications: Oil platforms, chemical pipelines, coal mine escape routes, gas stations, and flammable environments (-40℃ to +70℃ operating temp)

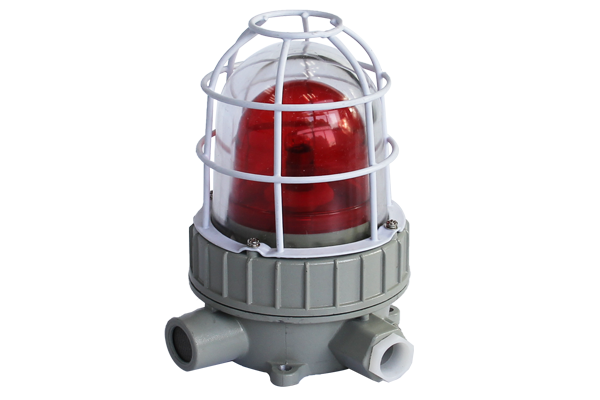

GYJ Series Explosion-Proof Sound-Light Warning Light


Product Features：


Explosion-Proof Construction：

ADC12 die-cast aluminum base + PC red lampshade with anti-static coating; guard models feature 304 stainless steel grille (load capacity ≥50kg). Ex d IIC T6 Gb certified for Zone 1/2 IIA-IIIC explosive gas environments.


Acoustic-Optical Performance：High-brightness LED red light (620-630nm wavelength), flash frequency 1-3Hz adjustable (steady/strobe/flash modes); built-in high-decibel horn (95-115dB@1m) with multi-tone options (buzzer/siren/voice prompt).


Electrical Specifications：Wide voltage design (AC/DC 24V-220V), power consumption ≤15W, response time ＜0.1s; overvoltage/overcurrent/short-circuit protection, surge protection ≥6kV.


Installation & Durability：Ceiling/wall/pole mounting options, standard G3/4" explosion-proof cable gland (DN20 conduit compatible); IP66 rating, -40℃ to +70℃ operating temperature, MTBF ＞50000 hours.

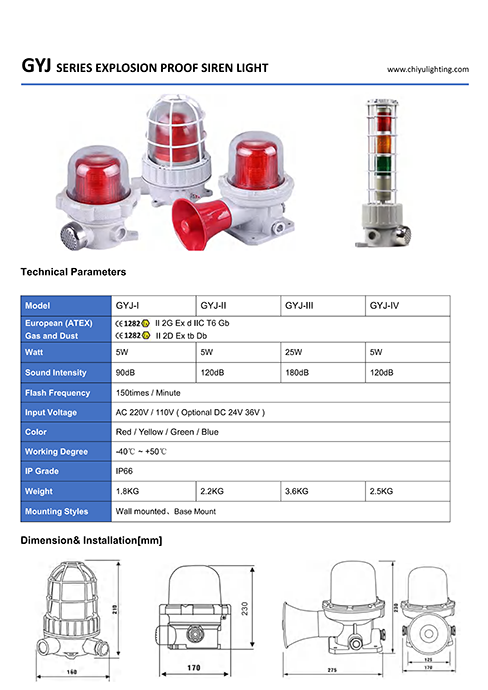

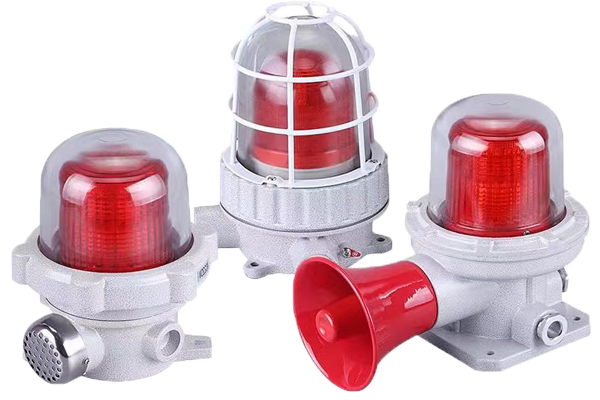

Model Variations：Basic (GYJ-100)：Warning light only, φ135mm, weight 1.2kg

Protected (GYJ-200)：With stainless steel guard, φ150mm, weight 1.8kg
Sound-Light (GYJ-300)：Integrated 115dB horn, φ165mm, weight 2.3kg
