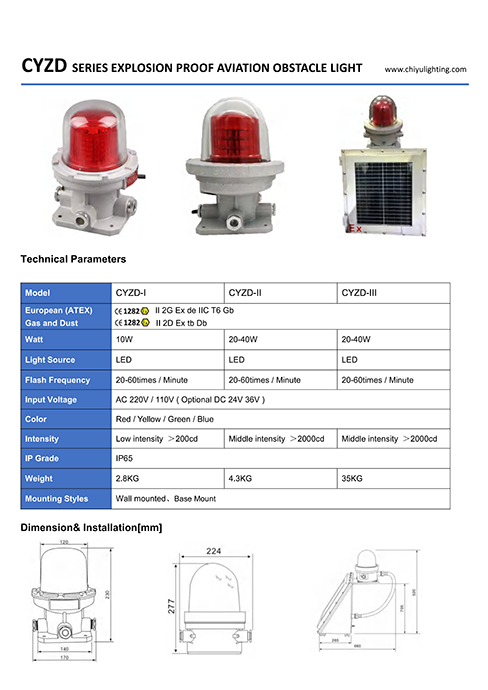

CYZD Series Explosion Proof Aircraft Obstruction Beacon

CYZD Series Explosion Proof Aircraft Obstruction Beacon

CYZD Series Explosion-Proof Warning Light


Key Specifications: Silver-gray die-cast aluminum base, red transparent hemispherical lampshade (built-in LED light source), middle red annular decorative ring, metal mounting bracket at the bottom, overall cylindrical structure.


Safety Compliance: GB3836.1-2010 compliant, explosion-proof rating Ex d IIC T6 Gb, IP66 protection, suitable for Zone 1/2 II explosive gas environments and hazardous area safety warning.


Warning Features: LED red light source (620-630nm wavelength), flash frequency 1-3Hz adjustable (steady/strobe/flash modes), sound pressure level ≥95dB@1m (sound-light model), compatible with AC220V/DC24V wide voltage input.

0.00
0.00

Product Description

CYZD Series Explosion-Proof Warning Light


Key Specifications: Silver-gray die-cast aluminum base, red transparent hemispherical lampshade (built-in LED light source), middle red annular decorative ring, metal mounting bracket at the bottom, overall cylindrical structure.


Safety Compliance: GB3836.1-2010 compliant, explosion-proof rating Ex d IIC T6 Gb, IP66 protection, suitable for Zone 1/2 II explosive gas environments and hazardous area safety warning.


Warning Features: LED red light source (620-630nm wavelength), flash frequency 1-3Hz adjustable (steady/strobe/flash modes), sound pressure level ≥95dB@1m (sound-light model), compatible with AC220V/DC24V wide voltage input.

CYZD Series Explosion-Proof Warning Light

Product Features：

Explosion-Proof Construction：Silver-gray die-cast aluminum cylindrical body (matte finish), top transparent hemispherical lampshade (built-in red LED module), middle red annular decorative ring, bottom metal mounting base. Ex d IIC T6 Gb certification for Zone 1/2 IIA-IIIC explosive gas environments.


Warning Performance：Red LED light source (620-630nm wavelength), three modes (steady/strobe/flash, 1-3Hz adjustable), luminous intensity ≥15cd/m²; sound-light model with buzzer (≥95dB@1m), independent switch control.


Safety Design：IP66 protection, operating temperature -40℃ to +55℃, surge protection ≥6kV; housing thickness ≥3mm, impact resistance ≥7J, bottom G3/4" explosion-proof cable gland (DN20 conduit compatible).


Electrical Specifications：Wide voltage input (AC85-265V/DC24V), power consumption ≤10W, overcharge/overdischarge protection; optional emergency battery pack (≥90min runtime), 100mm mounting hole spacing, compatible with 60-80mm diameter poles.


Mounting Options： Pole-mounted (standard) Wall-mounted (with optional bracket)
