BYY Series Explosion Proof EXIT Light

BYY Series Explosion Proof EXIT Light

BYY Series Explosion-Proof Emergency Exit Light

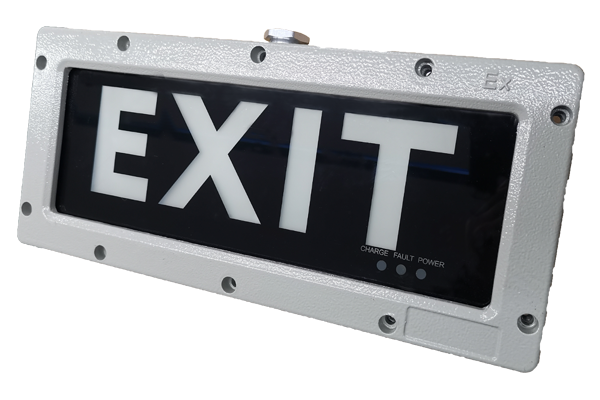

Key Specifications: Light gray metal housing with black panel displaying white uppercase "EXIT" lettering, "CHARGE FAULT POWER" status indicators with three LEDs at bottom right, top metal knob, "Ex" explosion-proof marking on right side.


Safety Compliance: GB3836.1-2010 compliant, explosion-proof rating Ex d IIC T6 Gb, IP66 protection, suitable for Zone 1/2 II explosive gas environments and emergency evacuation routes.


Emergency Features: Built-in backup power supply with automatic switchover during main power failure, ≥90min emergency runtime, status indicators for charging/fault/power, compatible with AC220V wide voltage input.



0.00
0.00

Product Description

BYY Series Explosion-Proof Emergency Exit Light


Key Specifications: Light gray metal housing with black panel displaying white uppercase "EXIT" lettering, "CHARGE FAULT POWER" status indicators with three LEDs at bottom right, top metal knob, "Ex" explosion-proof marking on right side.


Safety Compliance: GB3836.1-2010 compliant, explosion-proof rating Ex d IIC T6 Gb, IP66 protection, suitable for Zone 1/2 II explosive gas environments and emergency evacuation routes.


Emergency Features: Built-in backup power supply with automatic switchover during main power failure, ≥90min emergency runtime, status indicators for charging/fault/power, compatible with AC220V wide voltage input.



Product Features：

Explosion-Proof Construction：Light gray die-cast aluminum housing (sandblasted finish), black panel with white "EXIT" sign (acrylic, UV-resistant). Top metal adjustment knob, red "Ex" marking on right side. Ex d IIC T6 Gb certification for Zone 1/2 IIA-IIIC explosive gas environments.


Indicator Performance：LED light source (red/green optional), luminous intensity ≥15cd/m², emergency runtime ≥90min; three status indicators (charge/fault/power) with gray dot markers, automatic main/emergency mode switchover (response time ＜0.1s).

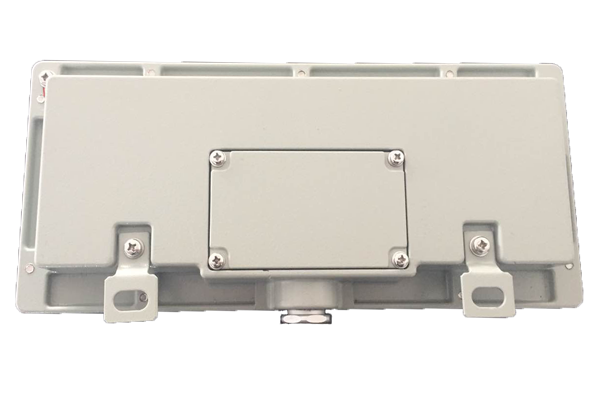

Safety Design：IP66 protection, operating temperature -40℃ to +55℃, surge protection ≥6kV; 8 circular mounting holes (φ6mm), bottom G3/4" explosion-proof cable gland (DN20 conduit compatible).


Electrical Specifications：Wide voltage input (AC220V/DC24V), power consumption ≤5W, built-in maintenance-free Ni-Cd battery (3.6V/1.2Ah); overcharge/overdischarge protection, housing thickness ≥3mm, impact resistance ≥7J.


Mounting Options：

Wall-mounted (standard) Ceiling-mounted (with optional adapter)
