BAJ Series Explosion Proof Emergency Light
BAJ Series Explosion-Proof Emergency Light

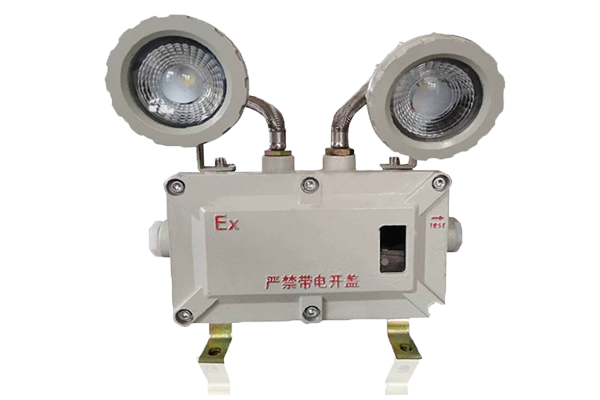

Key Specifications: Light gray die-cast aluminum body with dual circular lamp heads (connected by curved metal tubes), red "Ex" marking and "No live opening" warning text on front, yellow metal mounting bracket at bottom.
Safety Compliance: GB3836.1-2010 compliant, explosion-proof rating Ex d IIC T6 Gb, IP66 protection, suitable for Zone 1/2 II explosive gas environments and emergency evacuation routes.
Emergency Features: Built-in backup power module with automatic switchover (response time ＜0.5s), continuous lighting ≥90 minutes, 360° rotatable lamp heads, compatible with AC220V/DC24V wide voltage input.
BAJ Series Explosion-Proof Emergency Light
Key Specifications: Light gray die-cast aluminum body with dual circular lamp heads (connected by curved metal tubes), red "Ex" marking and "No live opening" warning text on front, yellow metal mounting bracket at bottom.
Safety Compliance: GB3836.1-2010 compliant, explosion-proof rating Ex d IIC T6 Gb, IP66 protection, suitable for Zone 1/2 II explosive gas environments and emergency evacuation routes.
Emergency Features: Built-in backup power module with automatic switchover (response time ＜0.5s), continuous lighting ≥90 minutes, 360° rotatable lamp heads, compatible with AC220V/DC24V wide voltage input.
BAJ Series Explosion-Proof Emergency Light
Product Features：
Explosion-Proof Construction：ADC12 die-cast aluminum one-piece body (electrostatic powder coating), dual lamp heads connected by curved metal tubes (304 stainless steel). Red "Ex" marking and "No live opening" warning label, Ex d IIC T6 Gb certification for Zone 1/2 IIA-IIIC explosive gas environments.
Emergency Performance：Built-in 12V/4.5Ah maintenance-free lead-acid battery, automatic switchover to emergency mode (response time ＜0.5s) with ≥90min runtime; dual 3W×2 lamp heads, luminous flux ≥240lm, 5500K cool white, CRI Ra≥70.
Safety Design：IP66 protection, operating temperature -40℃ to +55℃, surge protection ≥6kV; yellow metal mounting bracket (load capacity ≥10kg), G3/4" explosion-proof cable gland (DN20 conduit compatible).
Electrical Specifications：Wide voltage input (AC85-265V/DC24V), power consumption ≤15W, overcharge/overdischarge protection; 8 M6 stainless steel fixing screws, interlock protection (power cutoff when cover opened).
Mounting Options： Wall-mounted (standard) Ceiling-mounted (with optional adapter bracket)
