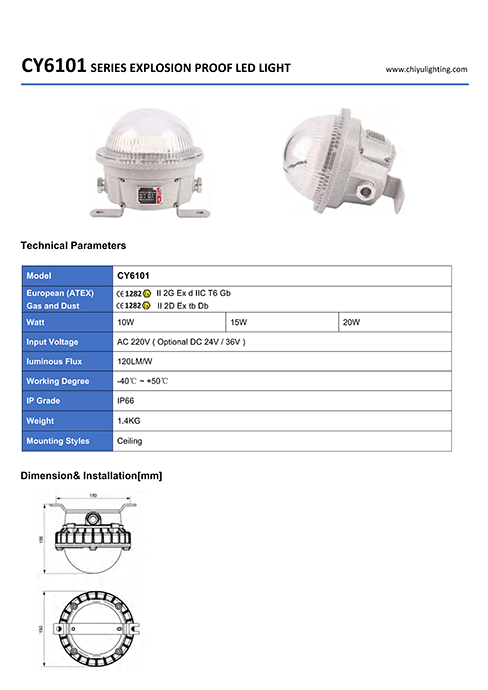

CY6101 Seires Explosion Proof LED light

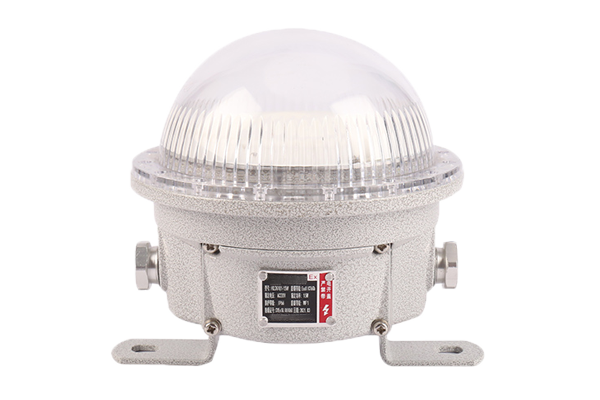

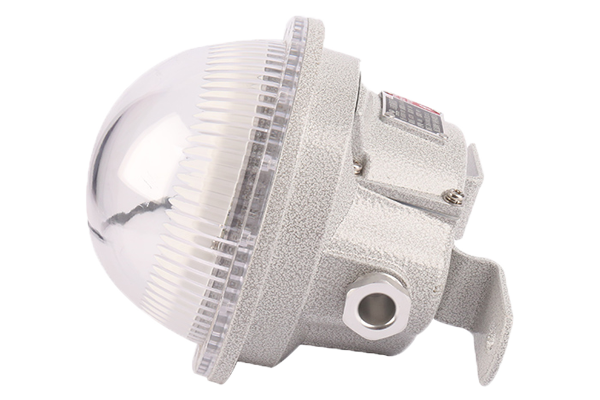

CY6101 Series Explosion-Proof LED Floodlight
Key Specifications: Silver-gray die-cast aluminum housing, circular transparent hemispherical lampshade (with vertical stripe diffuser design), metal mounting bracket at the bottom, explosion-proof cable gland on the side, technical parameters and red warning labels in the tag area.
Safety Compliance: GB3836.1-2010 compliant, explosion-proof rating Ex d IIC T6 Gb, IP66 protection, suitable for Zone 1/2 II explosive gas environments and humid/dusty areas.
Optical Features: Integrated LED light source with uniform soft light, adjustable multi-angle installation, AC220V power supply compatible, widely used in oil platforms, chemical pipeline areas, mine passages and other hazardous environment lighting.
CY6101 Series Explosion-Proof LED Floodlight
Key Specifications: Silver-gray die-cast aluminum housing, circular transparent hemispherical lampshade (with vertical stripe diffuser design), metal mounting bracket at the bottom, explosion-proof cable gland on the side, technical parameters and red warning labels in the tag area.
Safety Compliance: GB3836.1-2010 compliant, explosion-proof rating Ex d IIC T6 Gb, IP66 protection, suitable for Zone 1/2 II explosive gas environments and humid/dusty areas.
Optical Features: Integrated LED light source with uniform soft light, adjustable multi-angle installation, AC220V power supply compatible, widely used in oil platforms, chemical pipeline areas, mine passages and other hazardous environment lighting.
CY6101 Series Explosion-Proof LED Floodlight
Product Features： Explosion-Proof Construction：Silver-gray die-cast aluminum housing (rough texture finish), top transparent hemispherical lampshade (with vertical stripe diffuser), stainless steel explosion-proof bolts, bottom metal mounting bracket (with slotted hole adjustment). Ex d IIC T6 Gb certification for Zone 1/2 IIA-IIIC explosive gas environments.
Optical Performance：Integrated high-density LED array (12 LEDs/cm²), luminous efficacy ≥150lm/W, 4500K neutral white, CRI Ra≥80, 140° beam angle; ≥90% transmittance lampshade with anti-glare design (UGR＜19).
Safety Design：Side G3/4" explosion-proof cable gland (DN20 conduit compatible), red "Ex" marking and technical parameters (AC220V/30W) on label, IP66 protection, -40℃ to +60℃ operating temperature, surge protection ≥6kV. Installation & Maintenance：Dual-bracket base (load capacity ≥20kg) for ceiling/wall mounting, 100mm hole spacing; weight ≤2.5kg, MTBF＞60000 hours, tool-free lamp replacement.
Certifications： CCC certified (No. 2025011001XXXX), T/GIES 024—2025 compliant, meets IECEx IEC 60079-1:2014 international standard.
