CY97 Series LED Linear Light

CY97 Series LED Linear Light

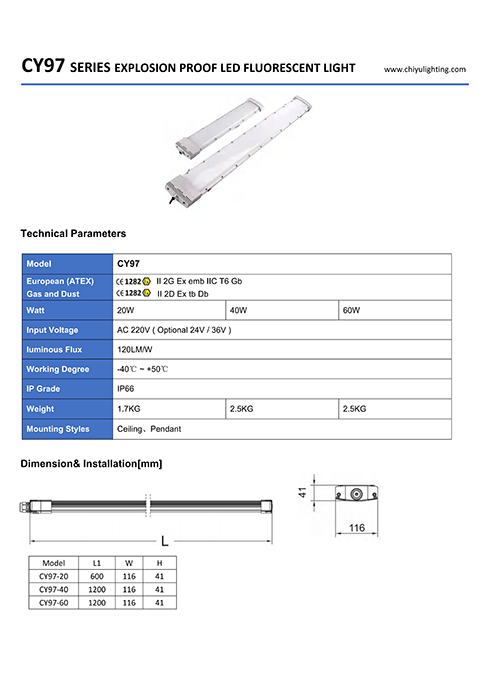

CY97 Series Explosion-Proof LED Linear Light


 Key Specifications: White elongated housing with evenly distributed fixing screws, heat dissipation grilles at both ends, black power cable, available in two lengths (main long strip and auxiliary short strip).


 Safety Compliance: GB3836.1-2010 compliant, explosion-proof rating Ex d IIC T6 Gb, IP66 protection, suitable for Zone 1/2 II explosive gas environments and humid/dusty industrial areas.


Installation Features: One-piece sealed structure, compatible with ceiling/wall/suspension mounting, AC85-265V wide voltage input, ideal for tunnels, production lines, warehouse shelves and long-distance lighting scenarios.

0.00
0.00

Product Description

CY97 Series Explosion-Proof LED Linear Light


 Key Specifications: White elongated housing with evenly distributed fixing screws, heat dissipation grilles at both ends, black power cable, available in two lengths (main long strip and auxiliary short strip).


 Safety Compliance: GB3836.1-2010 compliant, explosion-proof rating Ex d IIC T6 Gb, IP66 protection, suitable for Zone 1/2 II explosive gas environments and humid/dusty industrial areas.


Installation Features: One-piece sealed structure, compatible with ceiling/wall/suspension mounting, AC85-265V wide voltage input, ideal for tunnels, production lines, warehouse shelves and long-distance lighting scenarios.

CY93 Series Explosion-Proof LED Linear Light

Product Features：

Explosion-Proof Construction：White ABS engineering plastic housing (flame rating V0) with 1.5mm tempered glass diffuser, aluminum alloy heat dissipation grilles at both ends (thermal conductivity ＞200W/m·K). IP66 protection, Ex d IIC T6 Gb certification for Zone 1/2 IIA-IIIC explosive gas environments.

Optical Performance：High-brightness LED array (10mm spacing), luminous efficacy ≥150lm/W, 4000K neutral white, CRI Ra≥80, 120° beam angle; linear light-emitting surface design with uniform illuminance ≥500lux (at 3m), flicker-free (ripple depth ＜5%).

Thermal Management：Integrated heat sink + end grille convection structure, temperature rise ≤25K at 20W, LED lifespan ＞80000 hours (L70 standard); 304 stainless steel grille with impact resistance ≥7J.

Installation & Maintenance：Ceiling/wall/suspension mounting options, standard G1/2" explosion-proof cable gland (DN20 conduit compatible); weight ≤2.5kg (long model)/1.2kg (short model), adjustable mounting hole spacing (500mm/300mm).
