BYS Series Fluorescent Linear Light
BYS Series Explosion-Proof Fluorescent Light
Key Specs: White ABS housing, 0.6m/1.2m length options, 20W-40W power, IP66 protection, T8 fluorescent tube compatible
Safety Compliance: GB3836.1-2010 certified, Ex d IIC T6 Gb explosion-proof rating, CCC & T/GIES 024-2025 compliant for Zone 1/2 hazardous areas
Structural Design: Snap-on sealed construction, tempered glass diffuser, bottom black terminal box, optional emergency battery (≥90min runtime)
Applications: Humid tunnels, underground parking, food processing plants, pharmaceutical cleanrooms, and explosion-proof lighting areas (-20℃ to +50℃ operating temp)
BYS Series Explosion-Proof Fluorescent Light
Key Specs: White ABS housing, 0.6m/1.2m length options, 20W-40W power, IP66 protection, T8 fluorescent tube compatible
Safety Compliance: GB3836.1-2010 certified, Ex d IIC T6 Gb explosion-proof rating, CCC & T/GIES 024-2025 compliant for Zone 1/2 hazardous areas
Structural Design: Snap-on sealed construction, tempered glass diffuser, bottom black terminal box, optional emergency battery (≥90min runtime)
Applications: Humid tunnels, underground parking, food processing plants, pharmaceutical cleanrooms, and explosion-proof lighting areas (-20℃ to +50℃ operating temp)

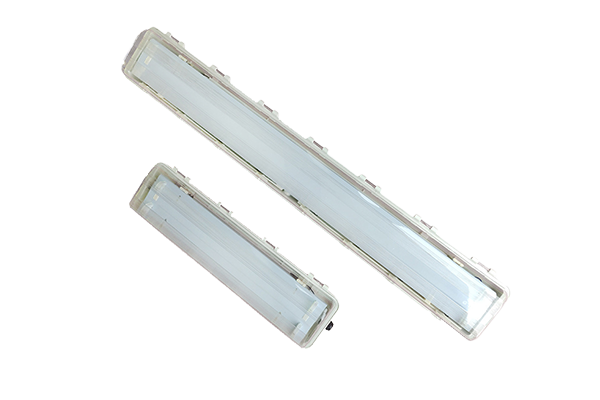

BYS Series Explosion-Proof Fluorescent Light
Product Features:
Explosion-Proof Construction: White ABS engineering plastic housing (flame rating V0) with 1.5mm tempered glass diffuser, IP66 protection against dust and temporary water immersion (1m depth for 30min).
Safety Compliance: GB3836.1-2010/IEC 60079-0 compliant, Ex d IIC T6 Gb certification, CCC & T/GIES 024-2025 approved for Zone 1/2 II explosive gas environments.
Optical Performance: T8 fluorescent tube compatible (20W/30W/40W options), efficacy ≥85lm/W, CRI Ra≥80, 4000K neutral white, illumination radius 5-6m, optional emergency backup (≥90min runtime).
Installation & Maintenance: Snap-on quick-install design with G1/2" explosion-proof cable gland, suitable for ceiling/flush/pendant mounting; bottom black rubber seal (aging resistance -40℃ to +80℃) ensures long-term sealing.
Model Variations:
BYS-06: 0.6m length, single tube 20W, weight 1.2kg
BYS-12: 1.2m length, double tube 40W, weight 2.1kg
