BPY Series Fluorescent Linear Light

BPY Series Fluorescent Linear Light

BPY Series Explosion-Proof Fluorescent Light


Key Specs: Light gray aluminum alloy housing, 1.2m/1.5m length options, 20W-40W power, white hollow protective grid, IP66 protection


Safety Compliance: GB3836.1-2010 certified, Ex d IIC T6 Gb explosion-proof rating, CCC & T/GIES 024-2025 compliant for Zone 1/2 hazardous areas


Structural Design: Die-cast aluminum end caps, tempered glass diffuser, built-in anti-glare grille, red/black cable lead (1.5m length), horizontal/vertical mounting support


Applications: Humid tunnels, underground mines, chemical pipelines, offshore platforms, and flammable environments (-40℃ to +60℃ operating temp)

0.00
0.00

Product Description

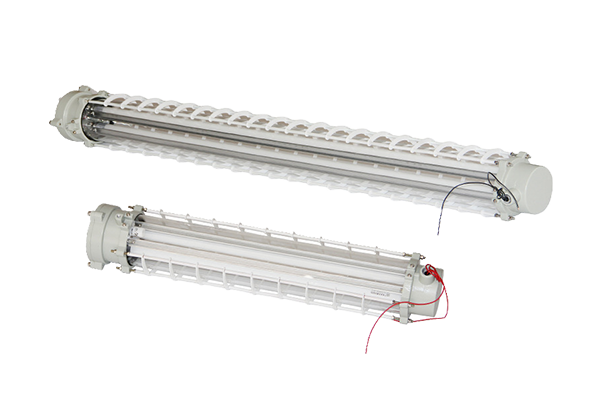

BPY Series Explosion-Proof Fluorescent Light


Key Specs: Light gray aluminum alloy housing, 1.2m/1.5m length options, 20W-40W power, white hollow protective grid, IP66 protection


Safety Compliance: GB3836.1-2010 certified, Ex d IIC T6 Gb explosion-proof rating, CCC & T/GIES 024-2025 compliant for Zone 1/2 hazardous areas


Structural Design: Die-cast aluminum end caps, tempered glass diffuser, built-in anti-glare grille, red/black cable lead (1.5m length), horizontal/vertical mounting support


Applications: Humid tunnels, underground mines, chemical pipelines, offshore platforms, and flammable environments (-40℃ to +60℃ operating temp)

BPY Series Explosion-Proof Fluorescent Light


Product Features：
Explosion-Proof Construction：6063 aluminum alloy housing (anodized surface), 1.2mm tempered glass diffuser, white ABS hollow guard (impact resistance ≥7J), IP66 protection, Ex d IIC T6 Gb rating.


Thermal Management：Integrated heat sink structure with internal convection air duct, temperature rise ≤30K at 20W, fluorescent tube lifespan >12000 hours.


Electrical Specifications：T8 fluorescent tube compatible (20W/40W options), electronic ballast (PF>0.95), AC220V/50Hz power supply, built-in overcurrent protection.


Installation & Maintenance：M20×1.5 explosion-proof cable glands, steel conduit compatible; ceiling/wall/suspension mounting options, weight ≤3.5kg, adjustable mounting hole spacing (100mm/200mm).


Model Variations：
BPY-600：600mm length, 20W×2, with protective guard
BPY-1200：1200mm length, 40W×2, basic model
