CY61 Series Explosion Proof High Bay

CY61 Series Explosion Proof High Bay

CY61 Series Explosion-Proof LED Floodlight

●Key Specs: Light gray die-cast aluminum housing, 180mm diameter, 30-100W adjustable power, LED array layout, luminous efficacy ≥160lm/W

●Safety Compliance: Meets GB3836.1-2010 standard, explosion-proof marking Ex d IIC T6 Gb, IP66 protection, CCC certified and T/GIES 024—2025 compliant

●Structural Design: Textured surface heat dissipation structure, tempered glass panel, stainless steel fixing screws, built-in anti-glare optics, black rubber sealing ring

●Applications: Oil storage tanks, chemical reaction workshops, coal mine tunnels, gas stations and other IIA-IIIC explosive gas environments, operating temperature -40℃ to +60℃



0.00
0.00

Product Description

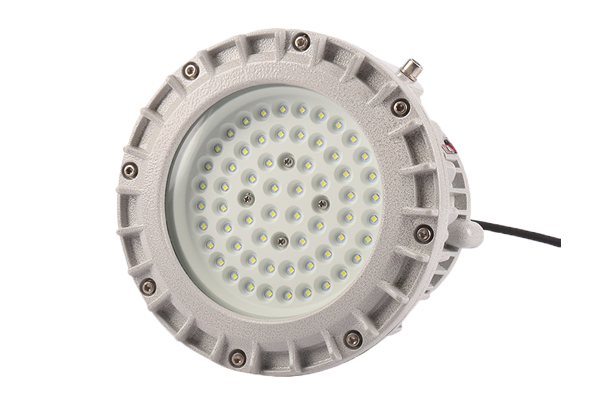

CY61 Series Explosion-Proof LED Floodlight

●Key Specs: Light gray die-cast aluminum housing, 180mm diameter, 30-100W adjustable power, LED array layout, luminous efficacy ≥160lm/W

●Safety Compliance: Meets GB3836.1-2010 standard, explosion-proof marking Ex d IIC T6 Gb, IP66 protection, CCC certified and T/GIES 024—2025 compliant

●Structural Design: Textured surface heat dissipation structure, tempered glass panel, stainless steel fixing screws, built-in anti-glare optics, black rubber sealing ring

●Applications: Oil storage tanks, chemical reaction workshops, coal mine tunnels, gas stations and other IIA-IIIC explosive gas environments, operating temperature -40℃ to +60℃



CY61 Series Explosion-Proof LED Floodlight Product Features:


● Explosion-Proof Construction: ADC12 die-cast aluminum housing with electrostatic powder coating (salt spray resistance ≥500h), 10mm tempered glass cover (transmittance ≥92%), stainless steel explosion-proof bolts. Ex d IIC T6 Gb certification for Zone 1/2 IIA-IIIC explosive gas environments.


● Thermal Management: Honeycomb hollow heat dissipation structure + aviation aluminum base with graphene thermal paste (thermal conductivity >400W/m·K). Case temperature ≤55℃ at 100W, LED lifespan >80000 hours (L70).


● Optical Performance: CREE XTE LED chips, 5000K cool white, CRI Ra≥85, 120° beam angle, efficacy ≥160lm/W; built-in constant current driver (efficiency ≥90%) with AC85-265V wide voltage input and short-circuit/overheat protection.


● Installation & Durability: 360° rotating stainless steel bracket (load ≥30kg) for ceiling/wall/pendant mounting; IP66 rating, operating temperature -40℃ to +70℃, 6kV surge protection.


Certifications: CCC certified (No. 2025011001XXXX), T/GIES 024—2025 compliant, meets ATEX and IECEx international standards.
