CY81 Series Explosion Proof LED Flood Light

CY81 Series Explosion Proof LED Flood Light

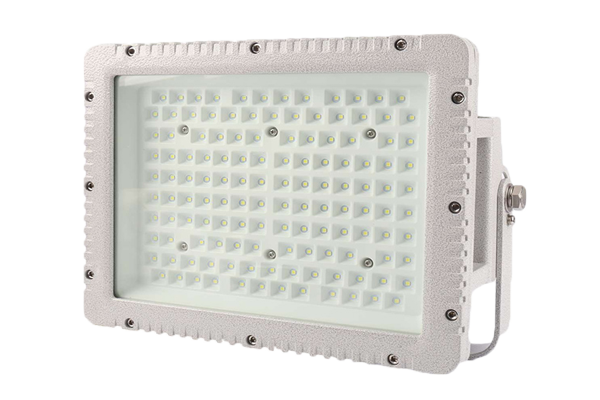

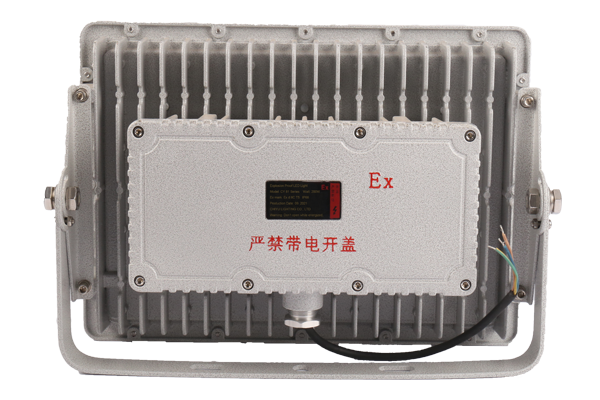

CY81 Series Explosion-Proof LEDFloodlight

●Key Specs: Light gray die-cast aluminum housing, rectangular design (380×240×120mm), 100-200W adjustable power, LED array layout, luminous efficacy ≥160lm/W

●Safety Compliance: GB3836.1-2010 certified, Ex d IIC T6 Gb explosion-proof rating, IP66 protection, CCC & T/GIES 024—2025compliant

● Structural Design: Striped surface heat dissipation structure, tempered glass panel, stainless steel screws, built-in surge protection (≤6kV), 360° adjustable bracket

● Applications: Oil storage tanks, chemical workshops, large warehouses, ports, and flammable environments


0.00
0.00

Product Description

CY81 Series Explosion-Proof LEDFloodlight

●Key Specs: Light gray die-cast aluminum housing, rectangular design (380×240×120mm), 100-200W adjustable power, LED array layout, luminous efficacy ≥160lm/W

●Safety Compliance: GB3836.1-2010 certified, Ex d IIC T6 Gb explosion-proof rating, IP66 protection, CCC & T/GIES 024—2025compliant

● Structural Design: Striped surface heat dissipation structure, tempered glass panel, stainless steel screws, built-in surge protection (≤6kV), 360° adjustable bracket

● Applications: Oil storage tanks, chemical workshops, large warehouses, ports, and flammable environments


CY81 Series Explosion-Proof LED Floodlight


Product Features：


Explosion-Proof Construction：ADC12 die-cast aluminum housing with electrostatic powder coating (salt spray resistance ≥500h), 10mm tempered glass cover (transmittance ≥92%), stainless steel explosion-proof bolts. Ex d IIC T6 Gb certification for Zone 1/2 IIA-IIIC explosive gas environments.


Thermal Management：Striped hollow heat dissipation structure + aviation aluminum base with graphene thermal paste (thermal conductivity ＞400W/m·K). Case temperature ≤55℃ at 200W, LED lifespan ＞80000 hours (L70).


Optical Performance：CREE XTE LED chips, 5000K cool white, CRI Ra≥85, 120° beam angle, efficacy ≥160lm/W; built-in constant current driver (efficiency ≥90%) with AC85-265V wide voltage input and short-circuit/overheat protection.


Installation & Durability：360° rotating stainless steel bracket (load ≥30kg) for ceiling/wall/pendant mounting; IP66 rating, operating temperature -40℃ to +70℃, 6kV surge protection.


Certifications： CCC certified (No. 2025011001XXXX), T/GIES 024—2025 compliant, meets ATEX and IECEx international standards.
