CY138 Series Explosion Proof LED Light

CY138 Series Explosion Proof LED Light

CY138 Series Explosion-Proof LED Floodlight


● Key Specs: Die-cast aluminum housing (silver-gray), tempered glass panel, 50W-200W adjustable power, luminous efficacy ≥160lm/W, CRI Ra≥85


 ● Safety Compliance: Meets GB3836.2-2010 standard, explosion-proof marking Ex d IIC T6 Gb, CCC certified (T/GIES 024—2025 compliant), IP66 protection


 ● Structural Design: Hollow heat dissipation structure with graphene thermal material, case temperature ≤60℃ (200W full load), 360° adjustable bracket (ceiling/wall mounting)


● Applications: Oil storage tanks, chemical reactors, coal mine tunnels, natural gas processing plants, and other IIA-IIIC explosive gas environments



0.00
0.00

Product Description

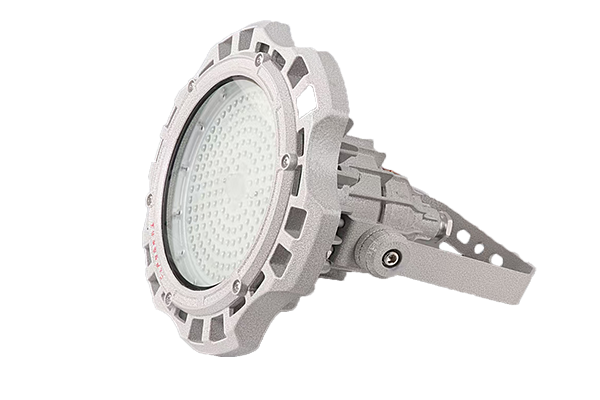

CY138 Series Explosion-Proof LED Floodlight


● Key Specs: Die-cast aluminum housing (silver-gray), tempered glass panel, 50W-200W adjustable power, luminous efficacy ≥160lm/W, CRI Ra≥85


 ● Safety Compliance: Meets GB3836.2-2010 standard, explosion-proof marking Ex d IIC T6 Gb, CCC certified (T/GIES 024—2025 compliant), IP66 protection


 ● Structural Design: Hollow heat dissipation structure with graphene thermal material, case temperature ≤60℃ (200W full load), 360° adjustable bracket (ceiling/wall mounting)


● Applications: Oil storage tanks, chemical reactors, coal mine tunnels, natural gas processing plants, and other IIA-IIIC explosive gas environments



CY138 Series Explosion-Proof LED Floodlight


Product Features:


●Explosion-Proof Construction: ADC12 die-cast aluminum housing with electrostatic powder coating (salt spray resistance ≥500 hours); 10mm ultra-clear tempered glass diffuser (transmittance ≥92%) with stainless steel explosion-proof bolts. Certified Ex d IIC T6 Gb for hydrogen, acetylene and other IIIC explosive gas environments.


●Thermal Management: Innovative honeycomb hollow heat dissipation structure with graphene composite material (thermal conductivity >500W/m·K). Case temperature ≤60℃ at 200W, LED lifespan >80000 hours (L70 standard).


●Optical Performance: Taiwan Epistar 3030 LED chips, 5000K cool white, 120°/90° beam angle options, 0-10V dimming compatible; built-in surge protection (≤6kV) and over-temperature/current protection circuits.


●Installation & Durability: 360° rotating stainless steel bracket (load capacity ≥50kg) for ceiling/wall/pendant mounting; IP66 rating with temporary water immersion resistance (1m depth for 30min) and -40℃ to +70℃ operating temperature range.


Certifications: CCC mandatory certification (Cert.No.: 2025011001XXXX), T/GIES 024—2025 compliant, meets ATEX 2014/34/EU and IECEx IEC 60079-0:2018 international standards.
