BHY Series Stainless Steel Cleanroom Fluorescent Light

BHY Series Stainless Steel Cleanroom Fluorescent Light

BHY Series Explosion-Proof Fluorescent Light

●Key Specs: Silver-gray metal frame, IP66 protection, (length options: 0.6m/1.2m), power 20W-40W

●Safety Compliance: Meets GB3836.1-2010 standard, CCC certified, T/GIES 024—2025 compliant, suitable for Zone 1/2 hazardous areas

●Applications: Petrochemical, coal mining, natural gas stations, and other flammable environments; durable in humid/corrosive conditions

0.00
0.00

Product Description

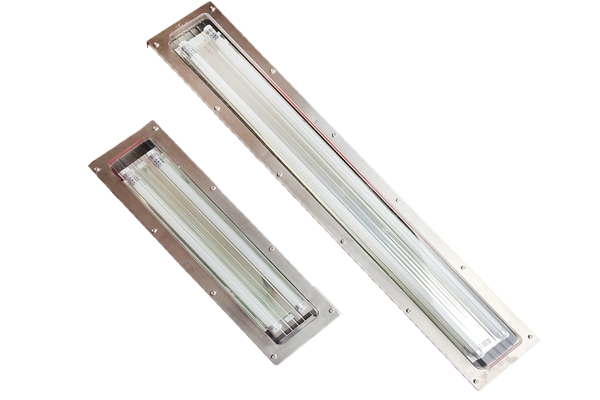

BHY Series Explosion-Proof Fluorescent Light

●Key Specs: Silver-gray metal frame, IP66 protection, (length options: 0.6m/1.2m), power 20W-40W

●Safety Compliance: Meets GB3836.1-2010 standard, CCC certified, T/GIES 024—2025 compliant, suitable for Zone 1/2 hazardous areas

●Applications: Petrochemical, coal mining, natural gas stations, and other flammable environments; durable in humid/corrosive conditions

BHY Series Explosion-Proof Fluorescent Light Product Features:


● Explosion-Proof Construction: 304 stainless steel frame with sandblasted anti-corrosion finish, high-strength tempered glass diffuser, IP66 protection class, operating temperature range -40℃ to +60℃.


● Certifications: Complies with GB3836.1-2010/IEC 60079-0 standards, CCC certified and T/GIES 024—2025 compliant, explosion-proof marking Ex d IIC T6 Gb, suitable for Zone 1/2 hazardous areas.


● Optical Performance: T8 fluorescent tube compatible (20W/30W/40W options), luminous efficacy ≥85lm/W, CRI Ra≥80, illumination radius 5-8m, optional emergency backup (≥90min runtime).


● Installation & Maintenance: Ceiling/wall/pendant mounting options, tool-free lamp replacement, quick-connect terminals, MTBF＞50,000 hours.


Applications: Oil refineries, natural gas processing plants, coal mine tunnels, chemical reactors, offshore platforms, and other IIA-IIIC explosive gas environments, as well as humid, dusty, or corrosive industrial sites.
